Chiller

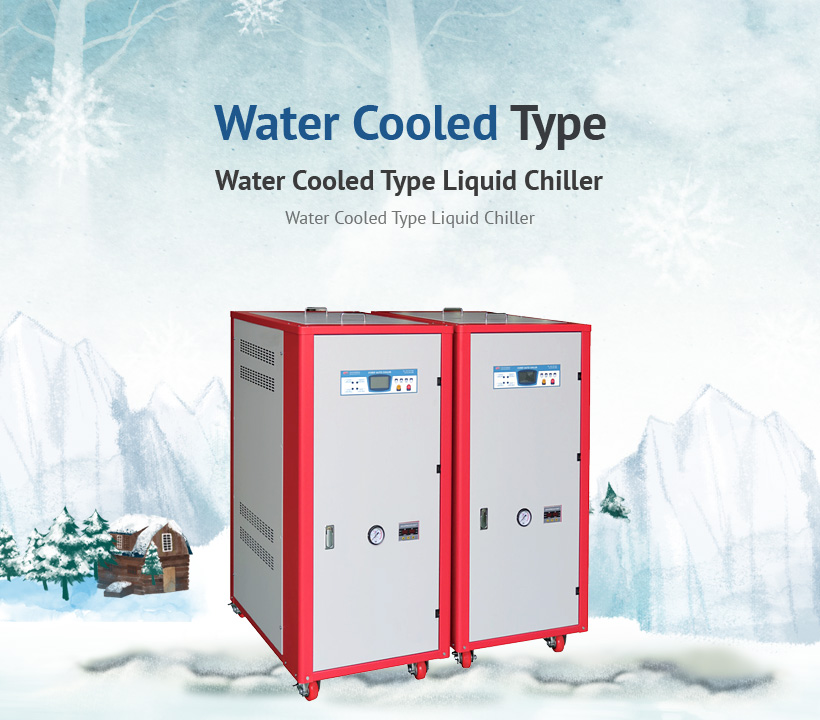

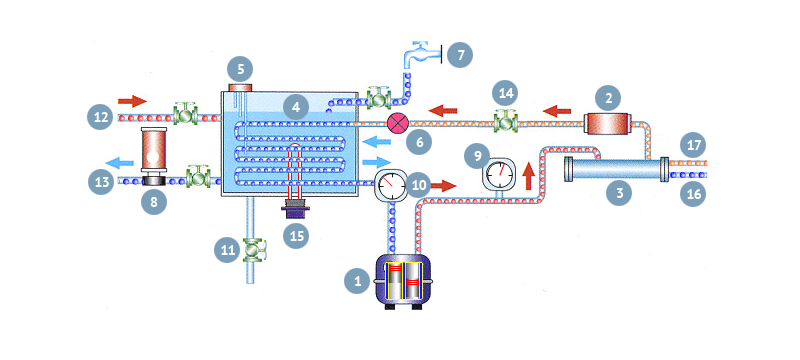

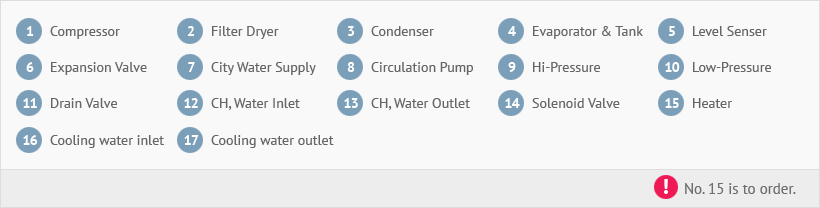

Flow Sheet

Specifications
MODEL KC20 020 KC20 030 KC20 050 KC20 080 KC20 100 KC20 150 KC20 200 KC20 300
Power Supply 380V / 3Ph / 60Hz
Refrigerant R-407C / R-22
Cooling cap kcal/hr 5,800 8,500 15,000 20,000 30,000 38,000 46,000 60,000
kW 5.9 9.1 15.8 21.6 34.0 43.3 51.9 67.5
Comp. Type Hermetic - Scroll
Out put (kW) 1.5 2.2 3.75 5.5 7.5 11 15 22
Circ.Pump Type Multistage Centrifugal Pump
Motor (kW x p) 0.55 0.55 0.55 1.1 1.5 1.85 2.2 3.0
Head (mh) 25 25 25 25 25 25 25 25
Flowrate (ℓ/min) 30 30 75 108 150 186 270 300
Freezing
Protection		 Type STS- Heater
Out put (kW) 1.0 2.0 3.0
Tank Capacity(ℓ) 32 43 80 120 130 160 280 545
Pipe Conn. Inlet / Outlet (A) 20 25 32 40 50
Make up (A) 15
Drain(A) 15 20
Cooling water flowrate
Connection size		 Cooling water rate 33 45 75 102 160 196 240 387
Connection size 20A 25A 32A 40A 40A 50A 50A 65A
Out-Dimension


 W 545 545 650 700 700 700 820 950
L 900 900 1,100 1,240 1,550 1,550 1,590 2,100
H 1,290 1,290 1,450 1,540 1,630 1,630 1,830 2,050
Gross Weight (Kg) 200 280 330 370 500 550 675 1,100
Power Consupumption (kW) 1.9 2.6 4.5 6.6 9 12.9 17.2 25.0
Capacity of electric wire
(Cable Size)		 220V / wire (㎟) 2.5 4.0 6.0 6.0 10.0 16.0 25.0 35.0
380V / wire (㎟) 2.5 2.5 4.0 4.0 6.0 10.0 16.0 25.0
