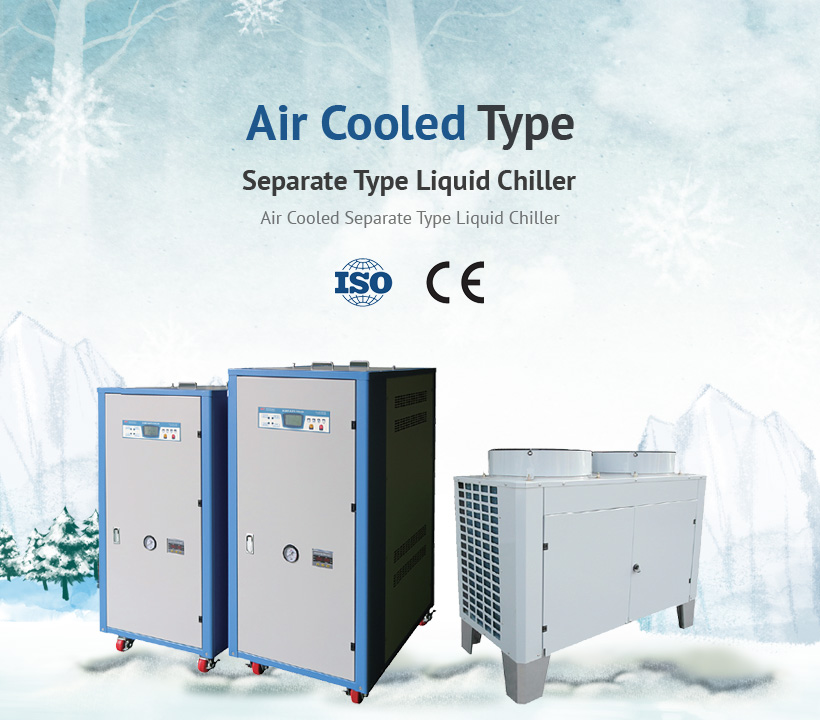

Chiller

Flow Sheet

Specifications
MODEL KC15 020 KC15 030 KC15 050 KC15 080 KC15 100 KC15 150 KC15 200 KC15 300
Power Supply 380V / 3Ph / 60Hz
Refrigerant R-407C / R-22
Cooling cap kcal/hr 5,000 8,000 14,000 19,000 30,000 38,000 46,000 60,000
kW 5.8 9.3 16.2 22.0 34.8 44.1 53.4 69.7
Comp. Type Hermetic (Scroll)
Out put (kW) 1.5 2.2 3.75 5.5 7.5 11 15 22
Circ.Pump Type Multistage Centrifugal Pump
Motor (kW x p) 0.55 0.55 0.75 1.1 1.5 1.85 2.2 3.0
Head (mh) 25 25 25 25 25 25 25 25
Flowrate (ℓ/min) 40 40 75 105 150 180 270 300
Condenser Fan (ø x B x ea) 450x4x1 450x4x1 550x4x1 600x4x1 630x4x2 550x4x2 630x4x2 630x4x3
Motor(kW x p x ea) 0.2x6x1 0.2x6x1 0.4x6x1 0.4x6x1 0.75x6x2 0.4x6x2 0.75x6x2 0.75x6x3
Freezing
Protection		 Type STS- Heater
Out put (kW) 1.0 2.0 3.0
Tank Capacity(ℓ) 32 43 80 120 130 160 280 545
Pipe Conn. Inlet / Outlet (A) 20 25 32 40 50
Make up (A) 15
Drain(A) 15 20
Out-Dimension


 W 545 545 650 700 700 700 820 950
L 900 900 1,100 1,240 1,550 1,550 1,590 2,100
H 1,290 1,290 1,450 1,540 1,630 1,630 1,830 2,050
Gross Weight (Kg) 220 230 280 330 400 450 575 750
Power Consupumption (kW) 2.1 2.8 5 7 9.8 13.7 18.7 27.3
Capacity of electric wire
(Cable Size)		 220V / wire (㎟) 2.5 4.0 6.0 6.0 10.0 16.0 25.0 35.0
380V / wire (㎟) 2.5 2.5 4.0 4.0 6.0 10.0 16.0 25.0
