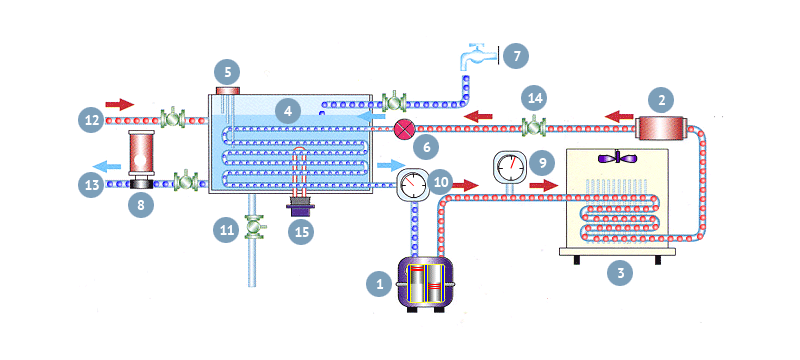

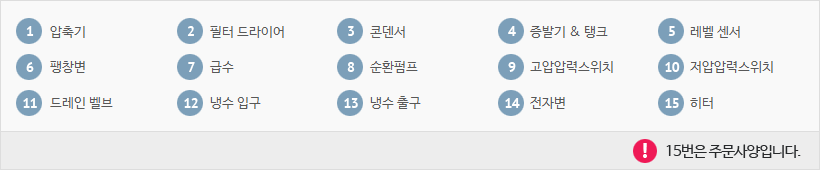

계통도
표준사양
※ 냉방능력(R-22)기준 : ET:7.2℃, CT:54.4℃일때 압축기설계기준임
| MODEL | KC10 020 | KC10 030 | KC10 050 | KC10 080 | KC10 100 | KC10 150 | KC10 200 | KC10 300 | |
|---|---|---|---|---|---|---|---|---|---|
| 전 원 (Power Supply) | 380V / 3Ph / 60Hz | ||||||||
| 사용냉매 (Refrigerant) | R-407C / R-22 | ||||||||
| 냉방능력 (cooling cap) |
kcal/hr | 5,000 | 8,000 | 14,000 | 19,000 | 30,000 | 38,000 | 46,000 | 60,000 |
| kW | 5.8 | 9.3 | 16.2 | 22.0 | 34.8 | 44.1 | 53.4 | 69.7 | |
| 압축기 (Comp.) |
Type | Hermetic (Scroll) | |||||||
| Out put (kW) | 1.5 | 2.2 | 3.75 | 5.5 | 7.5 | 11 | 15 | 22 | |
| 순환펌프 (Circ.Pump) |
Type | Multistage Centrifugal Pump | |||||||
| Motor (kW) | 0.55 | 0.55 | 0.75 | 1.1 | 1.5 | 1.85 | 2.2 | 3.0 | |
| Head (mh) | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| Flowrate (ℓ/min) | 70 | 70 | 75 | 105 | 150 | 180 | 270 | 300 | |
| 응축기 (Condenser) |
Fan (ø x B x ea) | 400x4x1 | 450x4x1 | 550x4x1 | 650x4x1 | 550x4x2 | 600x4x2 | 700x4x2 | 700x4x3 |
| Motor(kW x p x ea) | 0.1x6x1 | 0.2x6x1 | 0.4x6x1 | 0.75x6x1 | 0.4x6x2 | 0.4x6x2 | 0.75x6x2 | 0.75x6x3 | |
| 동파방지 (Freezing Protection) |
Type | 주문사양 : STS- Heater | |||||||
| Out put (kW) | 1.0 | 2.0 | 3.0 | ||||||
| 탱크용량 (Tank Capacity) ℓ | 30 | 40 | 80 | 120 | 130 | 150 | 260 | 540 | |
| 배 관 (Pipe Conn.) |
Inlet / Outlet (A) | 20 | 25 | 32 | 40 | 50 | |||
| Make up (A) | 15 | ||||||||
| Drain(A) | 15 | 20 | |||||||
| 외형치수 (Out-Dimension) |
W | 605 | 705 | 750 | 750 | 835 | 965 | 940 | |
| L | 950 | 1,300 | 1,400 | 1,510 | 1,820 | 2,020 | 2,655 | ||
| H | 1,370 | 1,520 | 1,515 | 1,780 | 1,830 | 2,115 | 2,060 | ||
| 제품중량 Gross Weight (Kg) |
200 | 280 | 330 | 400 | 460 | 600 | 800 | 930 | |
| 소비전력 Power Consupumption (kW) |
2.2 | 3.0 | 5.0 | 7.0 | 10.0 | 14.0 | 18.0 | 27.0 | |
| 전선용량 (Cable Size) |
220V / wire (㎟) | 2.5 | 4.0 | 6.0 | 6.0 | 10.0 | 16.0 | 25.0 | 35.0 |
| 380V / wire (㎟) | 2.5 | 2.5 | 4.0 | 6.0 | 6.0 | 10.0 | 16.0 | 25.0 | |
